API 6A GATE VALVES
INTRODUCTION
API 6A gate valves are crucial components in the oil and gas industry. They play a vital role in controlling fluid flow in the production, drilling, and wellhead processes. This presentation highlights the components, design, types, and benefits of API 6A gate valves.
COMPONENTS
Body
The body of the valve is designed to contain the pressure and withstand the forces developed during operation
Bonnet
The bonnet houses the stem, packing, and other internal components that isolate the operating parts from the environment.
Slab
The gate or Slab is the component that controls the flow of fluid. The Slab is moved by the stem to open or close the valve

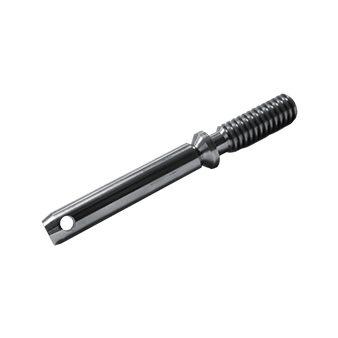

Stem
The stem connects the hand wheel or actuator to the gate or Slab, and it can be rotated or moved linearly to operate the valve.
DESIGN AND SPECIFICATIONS
Design
- The API 6A gate valve design ensures high performance, durability, and reliability, making it suitable for critical applications.
Specifications
- The valve has an API 6A specification that sets the minimum requirements for the valve's materials, dimensions, performance, and testing
API 6A Monogram
- The API monogram on the valve body indicates that the valve has been manufactured according to the API 6A specification and quality standards.
WORKING PRINCIPLE
Open Position
When the valve is fully open, the gate or Slab is retracted into the bonnet, allowing full fluid flow.

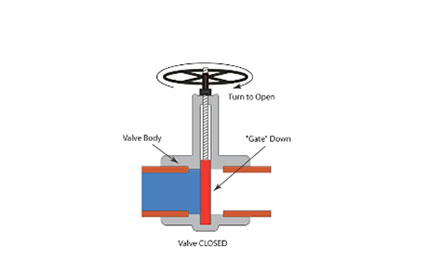

Closed Position
When the valve is fully closed, the gate or Slab seats against the body, blocking the fluid flow.
Partial Opening
When the valve is partially open, the gate or Slab allows only a portion of the fluid flow through the valve.
TYPES
Slab Gate Valve
Has a single gate that either seats against two seals in the valve body or is supported by two seats in the valve body
Expanding Gate Valve
Has two gates or slabs that open and close by expanding and contracting independently, ensuring a tight seal.
Conduit Gate Valve
Has a single gate that moves parallel to the flow path and allows the fluid to travel through the gate while open.
BODY STYLE

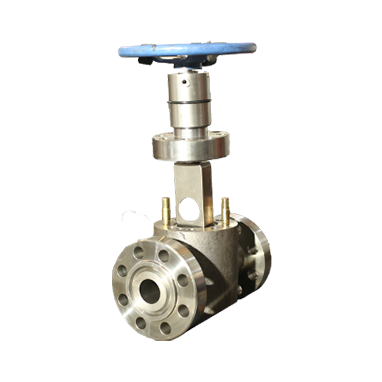

Flanged Connection
A flanged connection provides an easy and secure method for joining the valve to the pipeline, and it comes in different sizes.

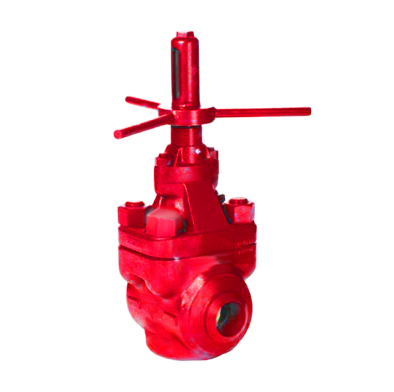

Threaded Connection
A threaded connection is suitable for small-gate valve sizes and low-pressure applications. It eliminates the need for welding.

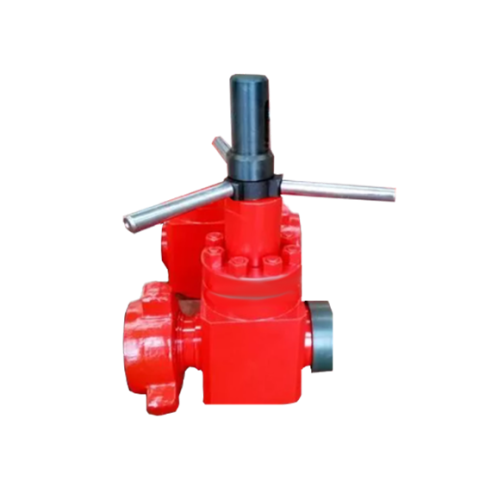

Butt-Weld Connection
A butt-weld connection provides a reliable and leak-proof joint between the valve and the pipeline, and it comes with or without a backing ring.
